Air Intake
Room air is pulled in through a pre-filter fitted at the rear of the pressure module. The pre-filter traps dust particles before they travel further.
AIRTEC CAPABILITY / 08
Pressure Module Manufacturer
Airtec Solutions is a Pressure Module Manufacturer in Pune supplying positive and negative pressure modules for hospitals, pharmaceutical cleanrooms, laboratories and controlled environments across Maharashtra.
PRESSURE MODULE MANUFACTURER IN MAHARASHTRA
Control contamination. Balance pressure.
When searching for a reliable Pressure Module Manufacturer in Maharashtra, you probably need to consider how to control contamination and maintain air pressure balance. Getting the airflow direction correct can decide the fate of compliance for your hospital operation theatre, pharmaceutical cleanroom, or industrial sterile area.
Airtec Solutions is a Positive Pressure Module Manufacturer as well as a Negative Pressure Module Manufacturer and is based in Pune. Our compact air handling units are engineered to maintain the right pressure differentials across the cleanroom zones.
We manufacture pressure modules for hospitals, pharmaceutical industries, diagnostic laboratories, and industrial cleanrooms all over Maharashtra that require precision air supply without investing in a complete air handling system.
Get a Custom Pressure Module Quote ↗HEPA PRESSURE MODULE
Compact filtration for controlled environments.

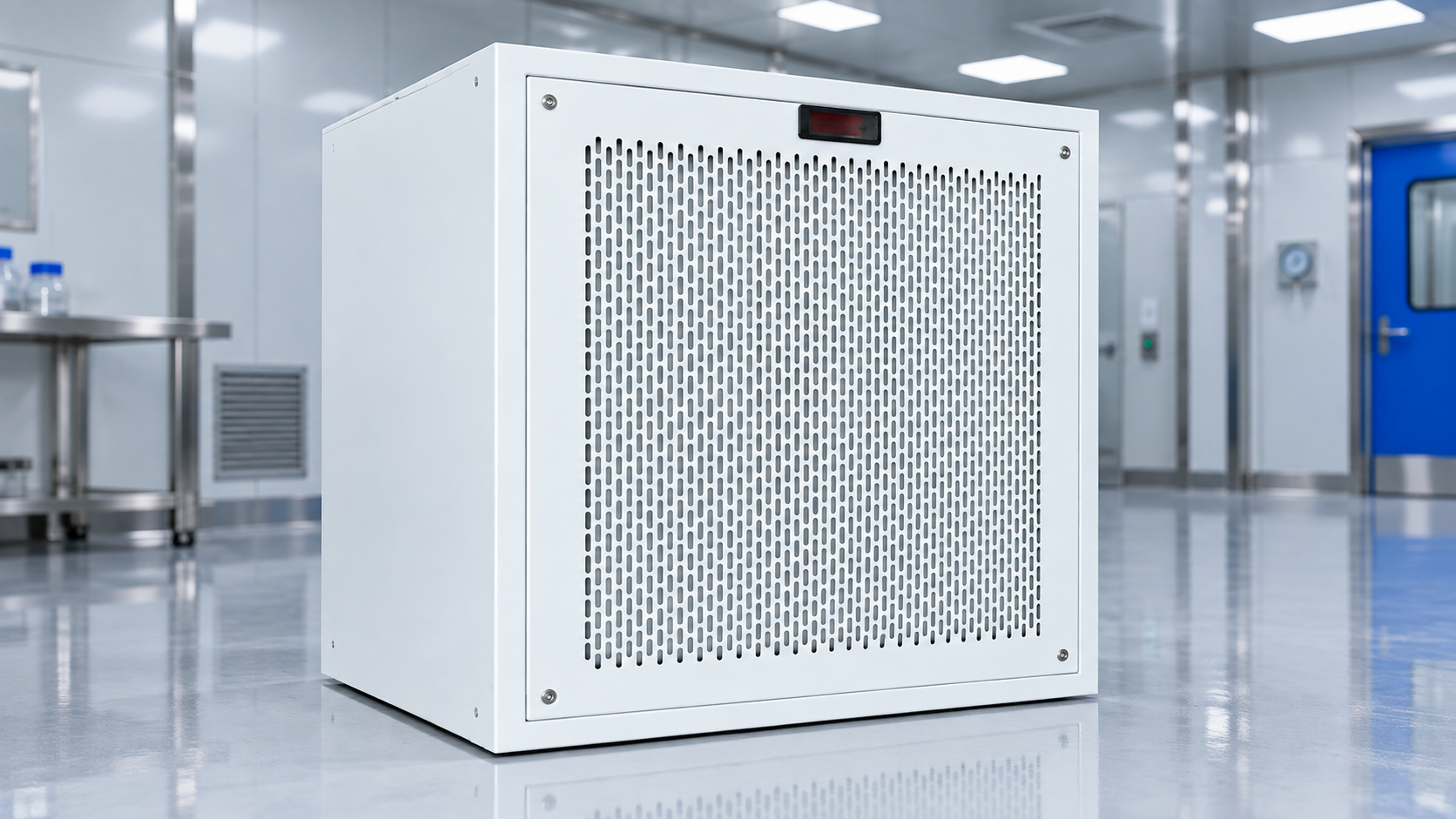

A close-up view of a pressure module unit designed for cleanroom, operation theatre, laboratory and other controlled-air applications.
SYSTEM WORKING PRINCIPLE
What Is a Pressure Module? How Does It Work?
A pressure module is a compact, self-contained air filtration unit that is fitted into a wall or window opening. It regulates air pressure and filters airborne particles in a cleanroom, operation theatre, isolation ward, or any controlled workspace.
The pressure module operates on the basic principle of a laminar airflow unit, but it is smaller and mounted on a wall.
Blower Stage
A blower assembly pulls the air through the pressure module at a controlled speed.
HEPA Filtration
The air then passes through a HEPA filter chamber in the pressure module. Submicron particles are removed. The system releases ultra-clean filtered air back into the room.
Pressure Regulation
A positive pressure module pushes filtered air into the room at a pressure higher than the surrounding area, so untreated or contaminated air cannot enter. A negative pressure module does the opposite. The Negative Pressure Module extracts air from the room and expels it, keeping pressure lower than the surroundings so infectious or hazardous air does not leak outward. This is why negative pressure modules are common in isolation rooms and biosafety areas.
Temperature Control
Many units connect to a condenser or cooling coil to keep circulating air within a working range.
CONFIGURATION GUIDE
Positive Pressure Module vs Negative Pressure Module
Choosing between a Positive Pressure Module and a Negative Pressure Module really comes down to one question: does your facility need to keep contaminants out of a room, or keep them contained inside it?
Here is a quick side-by-side comparison to help you decide.
| Parameter | Positive Pressure Module | Negative Pressure Module |
|---|---|---|
| Airflow direction | Pushes filtered air into the room | Extracts air out of the room |
| Pressure relative to surroundings | Higher than the adjacent area | Lower than the adjacent area |
| Primary purpose | Keeps external contaminants out | Contains internal contaminants |
| Typical applications | Operation theatres, ICUs, pharma cleanrooms, sterile stores | Isolation wards, infectious disease rooms, biosafety labs, quarantine zones |
| Contamination risk managed | Airborne particles or pathogens entering the room | Airborne particles or pathogens escaping the room |
| Filtration | Pre-filter plus HEPA filter (99.97% efficiency) | Pre-filter plus HEPA filter (99.97% efficiency) |
| Common industries | Hospitals, pharmaceutical manufacturing, electronics cleanrooms | Hospitals, infectious disease units, research labs, biosafety facilities |
| Room classification role | Maintains a higher cleanliness class, such as ISO Class 7 or 8 | Maintains containment integrity for hazardous or infectious zones |
| Automation grade | Automatic or manual | Automatic or manual |
| Manufactured by | Airtec Solutions, Pune, Maharashtra | Airtec Solutions, Pune, Maharashtra |
TECHNICAL PROFILE
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Airtec Solutions |
| Material | GI powder coated |
| Standard colour | RAL 9002 |
| Filtration | Pre-filter plus HEPA filter (99.97% efficiency) |
| Automation grade | Automatic or manual, as per requirement |
| Voltage | 230V, 50Hz, single phase |
| Airflow capacity | Customisable per room size and air change requirement |
| Country of origin | Made in India |
| Corrosion resistance | Yes |
WHY AIRTEC SOLUTIONS
Benefits and Features
Contamination Control
HEPA-filtered air brings down airborne particle count significantly.
Infection Prevention
Directional airflow, positive or negative, limits cross-contamination between zones.
Compact Footprint
Fits into a wall or window opening, so you do not need a full ducted AHU system.
Durable Build
The GI powder-coated body resists corrosion and holds up over years of use.
Consistent Airflow
A balanced blower and filter design keeps pressure differentials stable.
Customisable Capacity
Airflow (CFM) and filtration grade are tailored to your room size and use case.
APPLICATIONS
Where Pressure Modules Are Used
Our pressure modules are used across:
01Hospital operation theatres and ICUs02Isolation and quarantine wards03Pharmaceutical manufacturing cleanrooms04Diagnostic and research laboratories05Electronics and precision manufacturing cleanrooms06Biosafety cabinets and containment areas
FAQ
Frequently Asked Questions
01What is the difference between a positive pressure module and a negative pressure module?+
A positive pressure module pushes filtered air into a room to keep air and contaminants from entering. This helps maintain an environment, which is why it is often used in operation theatres and clean zones. A negative pressure module pulls air out of a room to prevent internal air from escaping, making it suitable for isolation rooms and areas where infectious diseases are managed.
02Which industries use pressure modules?+
Pressure modules are used in sectors where clean air and controlled airflow are essential, including hospitals, pharmaceutical manufacturing units, diagnostic labs, biosafety labs and cleanrooms for precision electronics. Any place that needs to control particles or prevent contamination relies on these systems.
03Can a pressure module be customised for a room size?+
Yes. We can adjust the airflow capacity in CFM, the filter type, the physical dimensions and the level of automation based on the room's air change rate (ACH) and how the space will be used.
04What filtration efficiency do Airtec Solutions pressure modules offer?+
Our pressure modules use HEPA filters rated at 99.97% efficiency. This means they can capture particles as small as 0.3 microns, supporting clean and safe air in controlled environments.
05Do you supply pressure modules across all of Maharashtra?+
Yes. As a manufacturer based in Pune, we install both positive and negative pressure modules throughout Maharashtra, including Mumbai, Pune, Nashik and Aurangabad. We also offer on-site installation and ongoing maintenance support.
PRESSURE MODULE MANUFACTURER IN PUNE
Get a Custom Pressure Module Quote.
Planning a hospital, pharmaceutical, or industrial cleanroom project in Maharashtra?
Airtec Solutions, a trusted Positive Pressure Module manufacturer and Negative Pressure Module manufacturer based in Pune, can help you configure the right unit for your facility.
Share your room size, air change requirement, and pressure specification, and our team will get back to you with a customised quote. We also supply related cleanroom equipment such as Modular Operation Theatres, HEPA Filters, and Pass Boxes for complete facility setups.
