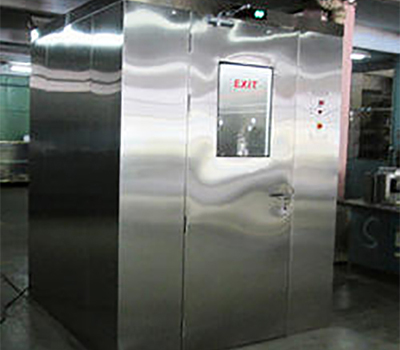

Airtec Solutions Make Air Showers & Clean Air System, Clean Air Pressure Module are fully automatic,
electrically operated units, that give personnel a high velocity clean air wash,
before they enter controlled clean-air environments. Air interlock system prevents
contaminants from entering clean rooms, by containing them in the Air Shower itself.
Versatile Airtec Air Showers possess a modular joinable design. This permits single
or tunnel constructions, to perfectly meet the needs of small to large users.
Different sizes and flexible models of entry and exit, afford both economy of
space and compatibility with user environments
Every Airtec Air Shower is thoroughly factory tested for high efficiency. Corrosion
resistant Powder Coat finish , MS Sheets are used to ensure manufacturing quality
that is built to last.
Air showers are considered as essential equipment’s in fields where sterile or
dust-free conditions are critical, such as life science and biomedical research,
pharmaceutical, drug industry, microelectronics, aerospace and other zones of
HEPA filters eff. 99.97% downs to 0.3 microns.
Pre- Filters eff. 85-95% down to 10 microns.
Motor Blower assembly High Capacity, FRP blower with aluminium impeller dai 7'x41/2 ' to Produce 6000 FPM high velocity.
Electrical Supply 3 Phase , 440 volt 50 Hz.
Total 16 nozzles provided for single person entry level.
Hinge type door with glass window.
Hydraulic door closer.
Body with 18 gauge oven baked CRCA powder coated finish, also available in optional stainless steel 304 Grade.
Nozzles are oven baked aluminum power coated for additional protection against corrosion and rust.
Heavy duty aluminum framed glass doors.
Electromagnetic locks and emergency push buttons for locking the doors instantly.
Self designed digital display microprocessor control panel for smooth, trouble free working.
HEPA filters of 99.97 % efficiency down to 0.3 micron.
Replaceable pre-filter with 50% dust arresting capacity to maximize the life of absolute filters.
PVC or SS(optional) flooring to facilitate cleaning.
Indication lights to regulate the traffic flow in and out of the air shower.
